py-xiaozhi Secondary Development Guide ​

This document is intended for developers who wish to extend py-xiaozhi with new features, develop plugins, or customize the UI.

Table of Contents ​

Project Architecture Overview ​

Directory Structure ​

py-xiaozhi/
├── main.py                 # Application entry point
├── src/
│   ├── activation/         # Device activation module
│   ├── audio_codecs/       # Audio codecs
│   ├── audio_processing/   # Audio processing (AEC, VAD, etc.)
│   ├── bootstrap/          # Service container and startup logic
│   │   ├── container.py    # ServiceContainer core
│   │   └── protocols.py    # Plugin interface protocols
│   ├── constants/          # Constant definitions
│   ├── core/               # Core modules
│   │   ├── event_bus.py    # Event bus
│   │   ├── state_manager.py# State manager
│   │   └── task_manager.py # Task manager
│   ├── logging/            # Logging system
│   ├── mcp/                # MCP tool system
│   │   ├── mcp_server.py   # MCP server
│   │   ├── tooling.py      # McpTool / Property
│   │   └── tools/          # Tools (explicit register_*)
│   ├── plugins/            # Plugin system
│   │   ├── base.py         # Plugin base class
│   │   ├── manager.py      # Plugin manager
│   │   ├── audio.py        # Audio plugin
│   │   ├── ui.py           # UI plugin
│   │   ├── mcp.py          # MCP plugin
│   │   └── wake_word.py    # Wake word plugin
│   ├── protocols/          # Communication protocols
│   ├── ui/                 # UI layer
│   │   ├── cli/            # Command-line interface
│   │   ├── gui/            # Graphical interface
│   │   │   ├── manager.py  # ViewManager
│   │   │   ├── qml/        # QML files
│   │   │   └── services/   # GUI services
│   │   ├── gpio/           # GPIO button interface (Linux only)
│   │   │   ├── manager.py  # GPIOViewManager
│   │   │   └── input.py    # GPIO button input
│   │   └── shared/         # Shared components
│   │       ├── bridge.py   # EventBridge
│   │       └── models/     # Data models
│   └── utils/              # Utility classes

Core Component Relationships ​

┌─────────────────────────────────────────────────────────┐
│                     ServiceContainer                     │
│  ┌─────────────┐  ┌─────────────┐  ┌─────────────────┐  │
│  │ TaskManager │  │StateManager │  │   EventBus      │  │
│  └─────────────┘  └─────────────┘  └─────────────────┘  │
│                           │                              │
│  ┌───────────────────────────────────────────────────┐  │
│  │                  PluginManager                     │  │
│  │  ┌────────┐ ┌────────┐ ┌────────┐ ┌────────────┐  │  │
│  │  │ Audio  │ │   UI   │ │  MCP   │ │  WakeWord  │  │  │
│  │  │ Plugin │ │ Plugin │ │ Plugin │ │   Plugin   │  │  │
│  │  └────────┘ └────────┘ └────────┘ └────────────┘  │  │
│  └───────────────────────────────────────────────────┘  │
└─────────────────────────────────────────────────────────┘

Quick Start ​

Environment Setup ​

bash
# Clone the project
git clone https://github.com/your-repo/py-xiaozhi.git
cd py-xiaozhi

# Create a virtual environment
python -m venv venv
source venv/bin/activate  # Linux/macOS
# or venv\Scripts\activate  # Windows

# Install dependencies
pip install -r requirements.txt

Running the Application ​

bash
# GUI mode
python main.py --mode gui

# CLI mode
python main.py --mode cli

# Skip activation (for debugging)
python main.py --mode gui --skip-activation

Modifying the Project Name ​

If you need to change the project name (e.g., for a fork), modify APP_NAME in src/constants/system.py:

python
# src/constants/system.py
class SystemConstants:
    APP_NAME = "my-xiaozhi"  # Change to your project name
    APP_VERSION = "2.0.0"
    # ...

Effects of the change:

  • The user data directory will change to ~/Library/Application Support/my-xiaozhi/ (macOS)
  • Config files, caches, logs, etc. will all be stored under the new directory
  • Data from differently named projects is isolated and will not conflict

Note: After changing the project name, existing user configurations will not be automatically migrated. You will need to manually copy or reconfigure them.

Customizing Verification Code Announcements ​

During device activation, a verification code is announced using pre-recorded audio files. Audio resources are located in the assets/sounds/ directory.

Supported languages (37 total):

assets/sounds/
├── zh-CN/          # Simplified Chinese (default)
├── zh-TW/          # Traditional Chinese
├── en-US/          # English
├── ja-JP/          # Japanese
├── ko-KR/          # Korean
├── de-DE/          # German
├── fr-FR/          # French
├── es-ES/          # Spanish
├── ... (more languages)
└── vi-VN/          # Vietnamese

Audio files included per language:

FileDescription
0.ogg ~ 9.oggPronunciation of digits 0-9
activation.oggActivation prompt (e.g., "Please enter the verification code")

Changing the announcement language:

Modify the locale parameter in src/activation/service.py:

python
from src.utils.activation_announcer import announce_activation_code

# Use English
announce_activation_code(code, locale="en-US")

# Use Japanese
announce_activation_code(code, locale="ja-JP")

Replacing audio files:

  1. Prepare new OGG-format audio files (recommended sample rate: 24kHz)
  2. Replace the files in the corresponding language directory
  3. File names must remain consistent (0.ogg ~ 9.ogg, activation.ogg)

Adding a new language:

  1. Create a new language directory under assets/sounds/ (e.g., my-lang/)
  2. Add the 11 required OGG audio files
  3. Specify the new locale when calling: announce_activation_code(code, locale="my-lang")

Customizing GPIO Pins ​

GPIO mode is only supported on Linux systems (Raspberry Pi) and is used to control the device via physical buttons.

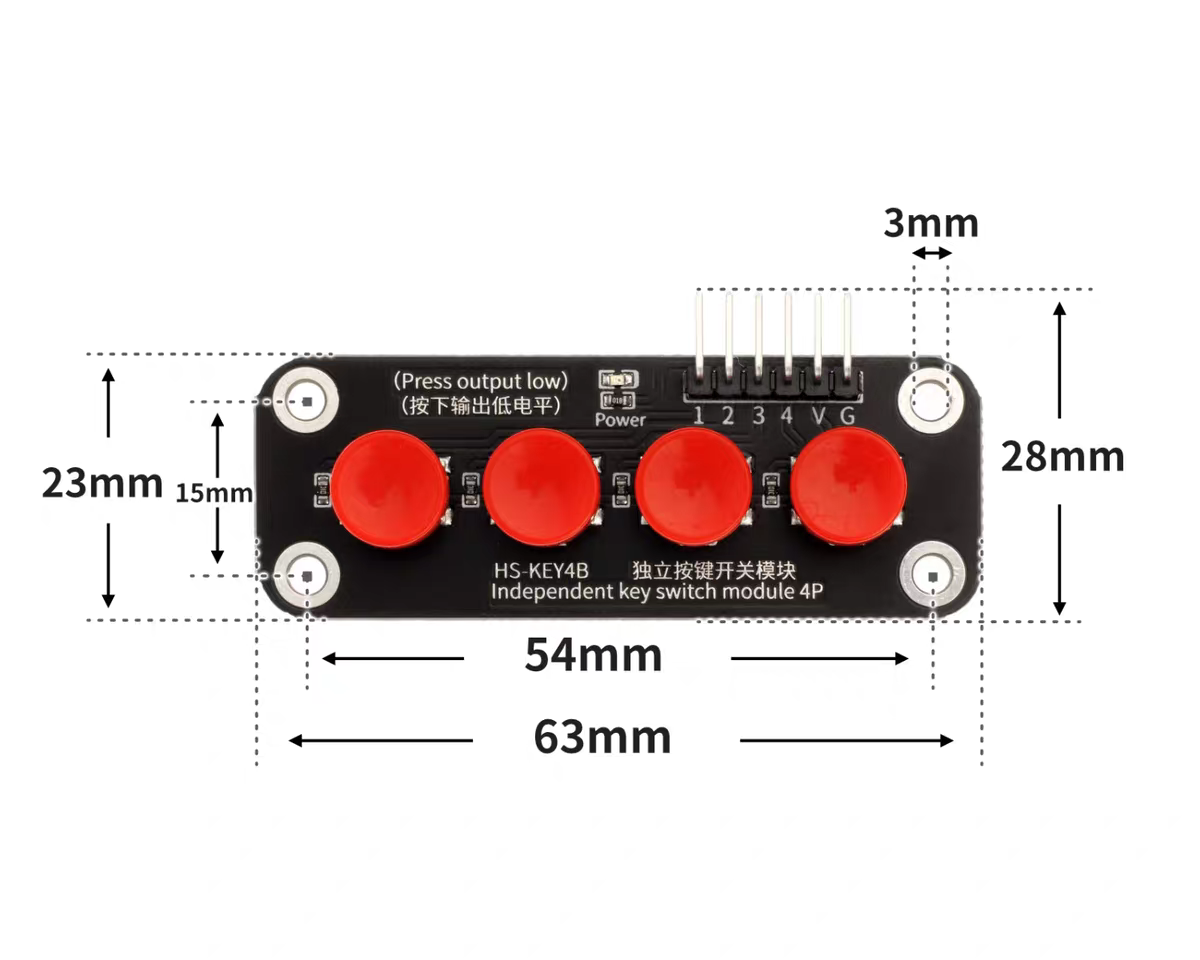

Recommended hardware: Four-button independent button module

Four-button independent button module

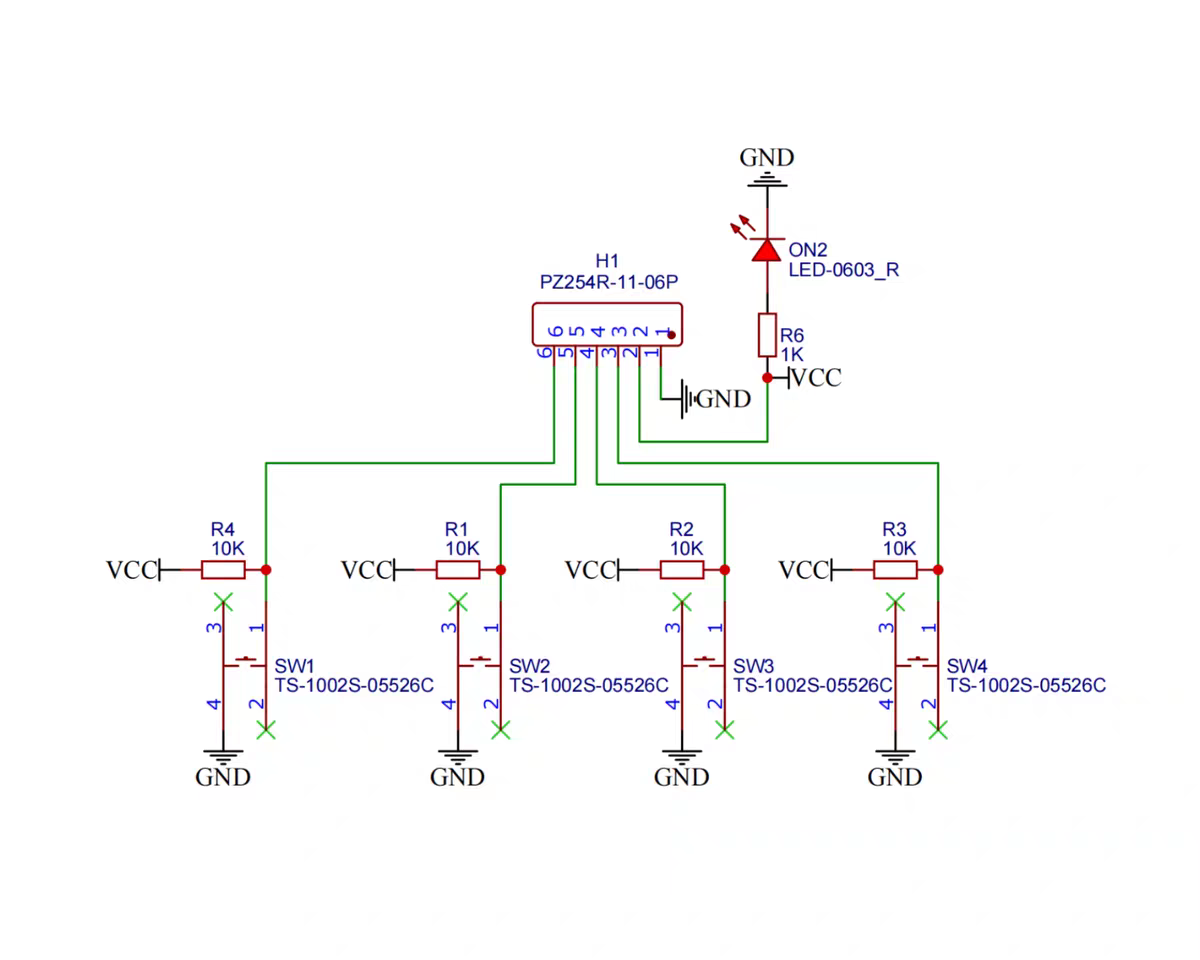

Button module schematic

Hardware wiring instructions

Button module 6-pin (1 2 3 4 V G) to Raspberry Pi 5:

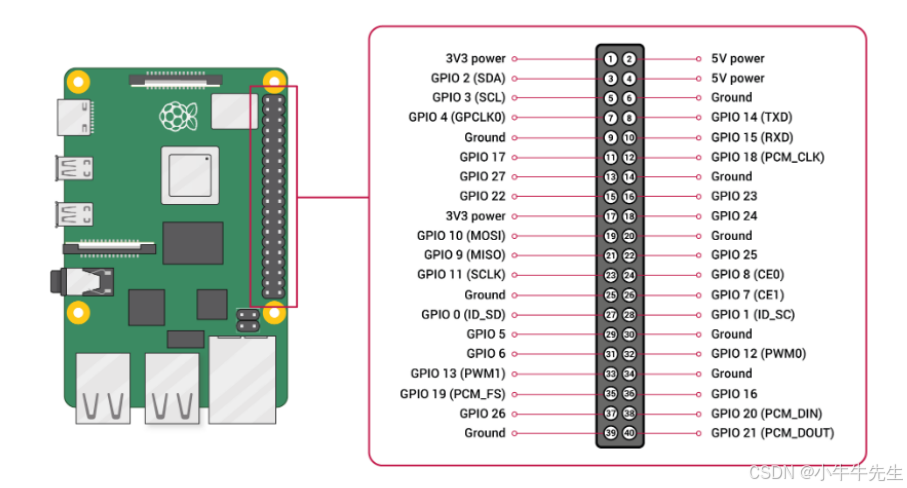

Raspberry Pi 5 pinout

Power wiring:

Module PinRaspberry Pi PinDescription
V3.3V (Pin 1 or Pin 17)Positive power
GGND (Pin 6/9/14/20/25/30/34/39)Negative power, recommended Pin 6

Warning: Do not connect to 5V (Pin 2/4), as this will damage the module!

Button wiring:

Module PinGPIO (BCM)Physical PinFunction
1GPIO 17Pin 11Start/stop conversation
2GPIO 27Pin 13Interrupt current speech
3GPIO 22Pin 15Toggle manual/auto mode
4GPIO 23Pin 16Exit program

Module behavior: outputs low level when pressed; code uses BCM numbering: 17/27/22/23

Modifying pin configuration:

Edit DEFAULT_PINS in src/ui/gpio/input.py:

python
# src/ui/gpio/input.py

# Default GPIO pin configuration (BCM numbering)
# In order: KEY1, KEY2, KEY3, KEY4
DEFAULT_PINS: List[int] = [17, 27, 22, 23]

# Change to match your actual wiring, for example:
# DEFAULT_PINS: List[int] = [5, 6, 13, 19]

Dependency installation:

bash
# Install the gpiozero library
sudo apt install python3-gpiozero python3-rpi.gpio

# Optional: if your system has this package, install it too (gpiozero prefers it)
sudo apt install -y python3-lgpio || true

# Add current user to the gpio group (avoids needing sudo each time)
sudo usermod -aG gpio $USER
# Log out and log back in or reboot for it to take effect

Running GPIO mode:

bash
python main.py --mode gpio --protocol websocket

Purchasing the button module:

Button module product QR code

Plugin Development ​

Plugins are the core way to extend py-xiaozhi's functionality. By inheriting from the Plugin base class, you can:

  • Respond to system events (audio data, JSON messages, state changes, etc.)
  • Invoke core commands (send audio, start listening, etc.)
  • Interact with other plugins

Creating a Plugin ​

Create a new file in the src/plugins/ directory:

python
# src/plugins/my_plugin.py

from typing import Any, TYPE_CHECKING
from src.plugins.base import Plugin
from src.logging import get_logger

if TYPE_CHECKING:
    from src.bootstrap.protocols import PluginCommands, PluginContext

logger = get_logger()


class MyPlugin(Plugin):
    """My custom plugin"""

    # Unique plugin identifier (required)
    name = "my_plugin"

    # Priority: 1-100, lower numbers initialize first
    priority = 50

    # Dependent plugins (optional)
    requires = ["audio"]  # Declare dependency on AudioPlugin

    def __init__(self):
        super().__init__()
        self._my_state = None

    async def setup(self, ctx: "PluginContext", cmd: "PluginCommands") -> None:
        """Plugin initialization phase

        Args:
            ctx: Plugin context, used for reading state (read-only)
            cmd: Plugin command interface, used for executing operations
        """
        await super().setup(ctx, cmd)

        # Access context via self.ctx
        config = self.ctx.get_config()

        # Access dependent plugins via self.deps
        audio_plugin = self.deps.get("audio")

        logger.info("MyPlugin initialized")

    async def start(self) -> None:
        """Plugin start (called after protocol connection is established)"""
        await super().start()

        # Subscribe to events
        from src.core.event_bus import Events
        self.ctx.event_bus.on(Events.DEVICE_STATE_CHANGED, self._on_state_changed)

        logger.info("MyPlugin started")

    async def on_protocol_connected(self, protocol: Any) -> None:
        """Notification when protocol channel is established"""
        logger.info("Protocol connected")

    async def on_incoming_json(self, message: Any) -> None:
        """Notification when a JSON message is received

        Args:
            message: JSON message dictionary
        """
        if not isinstance(message, dict):
            return

        msg_type = message.get("type")
        if msg_type == "my_custom_type":
            # Handle custom message
            pass

    async def on_incoming_audio(self, data: bytes) -> None:
        """Notification when audio data is received

        Args:
            data: Raw audio byte data
        """
        # Process audio data
        pass

    async def on_device_state_changed(self, state: Any) -> None:
        """Device state change notification"""
        from src.constants.constants import DeviceState

        if state == DeviceState.LISTENING:
            logger.info("Device is listening")
        elif state == DeviceState.SPEAKING:
            logger.info("Device is speaking")

    async def _on_state_changed(self, state):
        """EventBus event handler"""
        logger.debug(f"State changed: {state}")

    async def stop(self) -> None:
        """Plugin stop"""
        await super().stop()
        logger.info("MyPlugin stopped")

    async def shutdown(self) -> None:
        """Plugin final cleanup"""
        # Unsubscribe from events
        from src.core.event_bus import Events
        self.ctx.event_bus.off(Events.DEVICE_STATE_CHANGED, self._on_state_changed)

        await super().shutdown()
        logger.info("MyPlugin cleaned up")

Registering a Plugin ​

Register the plugin in src/bootstrap/container.py:

python
from src.plugins.my_plugin import MyPlugin

# In the _setup_plugins method, add:
self.plugins.register(
    AudioPlugin(),
    UIPlugin(mode=mode),
    McpPlugin(),
    WakeWordPlugin(),
    MyPlugin(),  # Add your plugin
)

PluginContext Interface ​

PluginContext provides read-only state access:

MethodDescription
get_device_state()Get current device state
get_listening_mode()Get current listening mode
is_listening()Whether currently listening
is_speaking()Whether currently speaking
is_idle()Whether idle
is_audio_channel_opened()Whether audio channel is open
should_capture_audio()Whether audio should be captured
get_config()Get configuration manager
event_busGet event bus

PluginCommands Interface ​

PluginCommands provides operation execution:

MethodDescription
start_listening(mode)Start listening
stop_listening()Stop listening
abort_speaking(reason)Abort speaking
send_audio(data)Send audio data
send_text(text)Send text
send_wake_word_detected(text)Send wake word detection
send_mcp_message(payload)Send MCP message
connect_protocol()Connect protocol
spawn(coro, name)Spawn async task
request_shutdown()Request application shutdown

MCP Tool Development ​

MCP (Model Context Protocol) lets the AI call local capabilities. Built-in tools are registered with register_*_tools(add_tool, …), wired from McpServer.add_common_tools / McpPlugin.setup. The global @mcp_tool decorator and auto-discovery have been removed.

Full walkthrough: MCP Tool Development Guide.

External plugins (user directory, vendored deps): External Plugins.

Creating tools (summary) ​

python
# src/mcp/tools/my_tools/register.py

from collections.abc import Callable
from typing import Any

from src.logging import get_logger
from src.mcp.tooling import McpTool, Property, PropertyList, PropertyType

logger = get_logger()


def register_my_tools(add_tool: Callable[[McpTool], None]) -> None:
    async def greet(args: dict[str, Any]) -> str:
        name = args.get("name", "friend")
        return f"Hello, {name}!"

    add_tool(
        McpTool(
            "my_tools.greet",
            "Greet the user. Call when they say hello.",
            PropertyList([Property("name", PropertyType.STRING)]),
            greet,
        )
    )

Export register_my_tools from __init__.py, then call it once inside add_common_tools (or McpPlugin.setup). Inject runtime services via parameters (closures), not module singletons.

Property types ​

PropertyTypeNotes
STRINGString
INTEGEROptional min_value / max_value
BOOLEANOptional default_value

Write clear description text (what / when / caveats) so the model knows when to call the tool.

UI Page Development ​

py-xiaozhi's GUI uses the PySide6 + QML (QtQuick) architecture, following the MVVM pattern.

Architecture Overview ​

┌─────────────────────────────────────────────────────────┐
│                       QML (View)                         │
│  ┌─────────────┐  ┌─────────────┐  ┌─────────────────┐  │
│  │ MainWindow  │  │Settings    │  │ MyWindow        │  │
│  │    .qml     │  │ Window.qml │  │    .qml         │  │
│  └──────┬──────┘  └──────┬──────┘  └────────┬────────┘  │
│         │                │                   │           │
│         ▼                ▼                   ▼           │
│  ┌───────────────────────────────────────────────────┐  │
│  │               EventBridge (Signal/Slot)            │  │
│  └───────────────────────────────────────────────────┘  │
└─────────────────────────────────────────────────────────┘
                           │
                           ▼
┌─────────────────────────────────────────────────────────┐
│                    Python (ViewModel)                    │
│  ┌─────────────┐  ┌─────────────┐  ┌─────────────────┐  │
│  │ MainModel   │  │ Settings   │  │ MyModel          │  │
│  │             │  │ Model      │  │                  │  │
│  └─────────────┘  └─────────────┘  └─────────────────┘  │
└─────────────────────────────────────────────────────────┘

Creating a New Page ​

1. Create a QML File ​

qml
// src/ui/gui/qml/windows/MyWindow.qml

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import "../theme"
import "../components"

AppWindow {
    id: root

    width: 400
    height: 300
    minimumWidth: 300
    minimumHeight: 200
    title: "My Window"

    Rectangle {
        id: content
        anchors.fill: parent
        anchors.margins: root.isMaximized ? 0 : 1
        color: Theme.background

        ColumnLayout {
            anchors.fill: parent
            anchors.margins: Theme.spacingMd
            spacing: Theme.spacingMd

            // Title
            Text {
                text: "Welcome"
                font.pixelSize: Theme.fontSizeLg
                font.weight: Font.Bold
                color: Theme.textPrimary
            }

            // Dynamic data binding
            Text {
                text: myModel ? myModel.message : "Loading..."
                font.pixelSize: Theme.fontSizeMd
                color: Theme.textSecondary
                wrapMode: Text.WordWrap
                Layout.fillWidth: true
            }

            // Input field
            Rectangle {
                Layout.fillWidth: true
                Layout.preferredHeight: 40
                color: Theme.background
                radius: Theme.radiusMd
                border.color: inputField.activeFocus ? Theme.primary : Theme.border
                border.width: 1

                TextInput {
                    id: inputField
                    anchors.fill: parent
                    anchors.margins: 10
                    font.pixelSize: Theme.fontSizeMd
                    color: Theme.textPrimary
                    verticalAlignment: TextInput.AlignVCenter

                    // Placeholder
                    Text {
                        anchors.fill: parent
                        text: "Please enter content..."
                        font: parent.font
                        color: Theme.textPlaceholder
                        verticalAlignment: Text.AlignVCenter
                        visible: !parent.text && !parent.activeFocus
                    }
                }
            }

            // Button
            Button {
                id: actionBtn
                Layout.preferredWidth: 120
                Layout.preferredHeight: 40
                text: "Confirm"

                background: Rectangle {
                    color: actionBtn.pressed
                        ? Theme.primaryPressed
                        : (actionBtn.hovered ? Theme.primaryHover : Theme.primary)
                    radius: Theme.radiusMd
                }

                contentItem: Text {
                    text: actionBtn.text
                    font.pixelSize: Theme.fontSizeMd
                    color: "white"
                    horizontalAlignment: Text.AlignHCenter
                    verticalAlignment: Text.AlignVCenter
                }

                onClicked: {
                    if (eventBridge) {
                        eventBridge.onMyAction(inputField.text)
                    }
                }
            }

            // Fill remaining space
            Item { Layout.fillHeight: true }
        }
    }
}

2. Create Python Model ​

python
# src/ui/shared/models/my_model.py

from PySide6.QtCore import QObject, Property, Signal, Slot


class MyModel(QObject):
    """My window data model"""

    # Signal definitions
    messageChanged = Signal()
    dataListChanged = Signal()

    def __init__(self, parent=None):
        super().__init__(parent)
        self._message = "Hello World"
        self._data_list = []

    # ========== message property ==========
    def get_message(self) -> str:
        return self._message

    def set_message(self, value: str) -> None:
        if self._message != value:
            self._message = value
            self.messageChanged.emit()

    message = Property(str, get_message, set_message, notify=messageChanged)

    # ========== dataList property ==========
    def get_data_list(self) -> list:
        return self._data_list

    def set_data_list(self, value: list) -> None:
        self._data_list = value
        self.dataListChanged.emit()

    dataList = Property(list, get_data_list, set_data_list, notify=dataListChanged)

    # ========== Slot methods (callable from QML) ==========
    @Slot(str, result=bool)
    def validate_input(self, text: str) -> bool:
        """Validate input"""
        return len(text) > 0

    @Slot()
    def refresh(self) -> None:
        """Refresh data"""
        # Implement refresh logic
        pass

3. Extend EventBridge ​

python
# Add to src/ui/shared/bridge.py

class EventBridge(QObject):
    # ... existing code ...

    # Add new signals
    myActionRequested = Signal(str)

    @Slot(str)
    def onMyAction(self, data: str) -> None:
        """Handle my action"""
        asyncio.create_task(
            self._event_bus.emit(Events.MY_CUSTOM_ACTION, {"data": data})
        )

4. Register in ViewManager ​

python
# src/ui/gui/manager.py

from src.ui.shared.models.my_model import MyModel

class ViewManager(QObject):
    def __init__(self, event_bus: EventBus):
        # ... existing code ...
        self._my_model = MyModel()

    def _inject_context(self):
        ctx = self._engine.rootContext()
        # ... existing code ...
        ctx.setContextProperty("myModel", self._my_model)

    @property
    def my_model(self) -> MyModel:
        return self._my_model

Theme Variables ​

Use the Theme object in QML to access theme variables:

Colors ​

VariableDescription
Primary Colors
Theme.primaryPrimary color #165DFF
Theme.primaryHoverPrimary hover #4080FF
Theme.primaryPressedPrimary pressed #0E42D2
Theme.primaryLightLight blue background #E8F3FF
Theme.primaryTextBlue text #2196F3
Functional Colors
Theme.successSuccess #00B42A
Theme.successLightSuccess light background #E8FFEA
Theme.successBorderSuccess border #B7EB8F
Theme.warningWarning #FF7D00
Theme.warningLightWarning light background #FFF7E8
Theme.warningBorderWarning border #FFE58F
Theme.errorError #F53F3F
Theme.errorHoverError hover #FF7875
Theme.errorLightError light background #FFF2F0
Theme.errorBorderError border #FFCCC7
Background Colors
Theme.backgroundBackground #FFFFFF
Theme.backgroundSecondarySecondary background #F7F8FA
Theme.backgroundHoverHover background #F2F3F5
Text Colors
Theme.textPrimaryPrimary text #1D2129
Theme.textSecondarySecondary text #4E5969
Theme.textPlaceholderPlaceholder text #86909C
Borders and Dividers
Theme.borderBorder color #E5E6EB
Theme.dividerDivider color #F2F3F5

Shadows ​

VariableDescription
Theme.shadowColorPrimary shadow #15000000
Theme.shadowLightLight shadow #08000000
Theme.shadowMediumMedium shadow #06000000
Theme.shadowSubtleSubtle shadow #04000000

Fonts ​

VariableDescription
Theme.fontSizeXsExtra small (10px)
Theme.fontSizeSmSmall (12px)
Theme.fontSizeMdMedium (14px)
Theme.fontSizeLgLarge (16px)
Theme.fontSizeXlExtra large (20px)
Theme.fontSizeXxlHuge (24px)
Theme.fontFamilySystem font
Theme.fontFamilyMonoMonospace font

Spacing ​

VariableDescription
Theme.spacingXsExtra small (4px)
Theme.spacingSmSmall (8px)
Theme.spacingMdMedium (12px)
Theme.spacingLgLarge (16px)
Theme.spacingXlExtra large (20px)
Theme.spacingXxlHuge (24px)

Border Radius ​

VariableDescription
Theme.radiusSmSmall (4px)
Theme.radiusMdMedium (8px)
Theme.radiusLgLarge (12px)
Theme.radiusXlExtra large (16px)

Animation ​

VariableDescription
Theme.animationFastFast (150ms)
Theme.animationNormalNormal (200ms)
Theme.animationSlowSlow (300ms)

Event Bus Communication ​

EventBus is the core mechanism for decoupled inter-component communication.

Basic Usage ​

python
from src.core.event_bus import Events, EventBus

# Get EventBus instance (via plugin context)
event_bus = self.ctx.event_bus

# Subscribe to events
async def my_handler(data):
    print(f"Received data: {data}")

event_bus.on(Events.DEVICE_STATE_CHANGED, my_handler)

# Emit events (execute all handlers in parallel)
await event_bus.emit(Events.DEVICE_STATE_CHANGED, new_state)

# Emit events sequentially
await event_bus.emit_sequential(Events.DEVICE_STATE_CHANGED, new_state)

# Unsubscribe
event_bus.off(Events.DEVICE_STATE_CHANGED, my_handler)

# Clear all handlers
event_bus.clear(Events.DEVICE_STATE_CHANGED)

Predefined Events ​

python
class Events:
    # Device state
    DEVICE_STATE_CHANGED = "device_state_changed"

    # Protocol related
    PROTOCOL_CONNECTED = "protocol_connected"
    PROTOCOL_DISCONNECTED = "protocol_disconnected"
    INCOMING_JSON = "incoming_json"
    INCOMING_AUDIO = "incoming_audio"

    # Network
    NETWORK_ERROR = "network_error"

    # Audio channel
    AUDIO_CHANNEL_OPENED = "audio_channel_opened"
    AUDIO_CHANNEL_CLOSED = "audio_channel_closed"

    # Application lifecycle
    APP_SHUTDOWN = "app_shutdown"

    # Music player
    MUSIC_STATE_CHANGED = "music_state_changed"
    MUSIC_LYRICS_UPDATE = "music_lyrics_update"
    MUSIC_PROGRESS_UPDATE = "music_progress_update"
    MUSIC_PAUSE_REQUEST = "music_pause_request"
    MUSIC_RESUME_REQUEST = "music_resume_request"

    # UI user actions (View → Plugin)
    UI_BUTTON_PRESS = "ui_button_press"
    UI_BUTTON_RELEASE = "ui_button_release"
    UI_MANUAL_TOGGLE = "ui_manual_toggle"
    UI_AUTO_TOGGLE = "ui_auto_toggle"
    UI_AUTO_START = "ui_auto_start"
    UI_ABORT_REQUEST = "ui_abort_request"
    UI_SEND_TEXT = "ui_send_text"
    UI_QUIT_REQUEST = "ui_quit_request"
    UI_OPEN_SETTINGS = "ui_open_settings"

    # GUI window
    UI_TOGGLE_WINDOW = "ui_toggle_window"

    # Configuration
    CONFIG_CHANGED = "config_changed"

Adding Custom Events ​

python
# src/core/event_bus.py

class Events:
    # ... existing events ...

    # Add custom events
    MY_CUSTOM_EVENT = "my_custom_event"
    MY_DATA_UPDATED = "my_data_updated"

Event Data Classes ​

It is recommended to create data classes for complex event data:

python
# src/my_module/events.py

from dataclasses import dataclass


@dataclass
class MyEventData:
    """My event data"""
    id: str
    name: str
    value: int
    timestamp: float


# Usage
await event_bus.emit(Events.MY_CUSTOM_EVENT, MyEventData(
    id="123",
    name="test",
    value=42,
    timestamp=time.time(),
))

Configuration Management ​

Use ConfigManager to manage application configuration.

Reading Configuration ​

python
from src.utils.config_manager import ConfigManager

from src.utils.config_manager import get_config

config = get_config()  # call initialize_config() at process entry first

# Read a configuration item
value = config.get_config("SECTION.KEY", default_value)

# Examples
aec_enabled = config.get_config("AEC_OPTIONS.ENABLED", True)
server_url = config.get_config("SERVER.URL", "ws://localhost:8080")

Writing Configuration ​

python
# Set a configuration item
config.set_config("SECTION.KEY", value)

# Save to file
config.save()

Hot Reloading Configuration ​

When configuration changes need to notify other components:

python
from src.core.event_bus import Events

# Emit an event after saving configuration
config.save()
await self.ctx.event_bus.emit(Events.CONFIG_CHANGED, {
    "key": "SECTION.KEY",
    "value": new_value,
})

Debugging and Testing ​

Starting in Debug Mode ​

bash
# Skip activation
python main.py --mode gui --skip-activation

# CLI mode (easier to view logs)
python main.py --mode cli --skip-activation

Logging System ​

python
from src.logging import get_logger

logger = get_logger()

logger.debug("Debug message")
logger.info("Info message")
logger.warning("Warning message")
logger.error("Error message", exc_info=True)

Unit Testing ​

python
# tests/test_my_plugin.py

import pytest
from unittest.mock import AsyncMock, MagicMock

from src.plugins.my_plugin import MyPlugin


class TestMyPlugin:
    @pytest.fixture
    def plugin(self):
        return MyPlugin()

    @pytest.fixture
    def mock_ctx(self):
        ctx = MagicMock()
        ctx.event_bus = MagicMock()
        ctx.get_config.return_value = MagicMock()
        return ctx

    @pytest.fixture
    def mock_cmd(self):
        return MagicMock()

    @pytest.mark.asyncio
    async def test_setup(self, plugin, mock_ctx, mock_cmd):
        await plugin.setup(mock_ctx, mock_cmd)
        assert plugin._ctx == mock_ctx
        assert plugin._cmd == mock_cmd

    @pytest.mark.asyncio
    async def test_on_incoming_json(self, plugin, mock_ctx, mock_cmd):
        await plugin.setup(mock_ctx, mock_cmd)

        message = {"type": "test", "data": "value"}
        await plugin.on_incoming_json(message)

        # Verify logic

Best Practices ​

1. Plugin Development ​

  • Use requires to declare dependencies rather than directly importing other plugins
  • Clean up resources and unsubscribe in shutdown()
  • Use self.cmd.spawn() to spawn async tasks
  • Do not directly reference other plugins; use EventBus for communication

2. MCP Tools ​

  • Provide a clear description with trigger scenarios
  • Return meaningful result strings
  • Catch and handle exceptions; return friendly error messages
  • Do not execute long-running blocking operations inside tools

3. UI Development ​

  • Use Theme variables to maintain visual consistency
  • Store only state in Model; handle only display in View
  • Use EventBridge for QML <-> Python communication
  • Do not call Python business logic directly from QML

4. Event Bus ​

  • Use predefined Events constants
  • Create data classes for complex data
  • Unsubscribe when components are destroyed
  • Do not create circular event triggers

5. Async Programming ​

  • Use async/await for I/O operations
  • Use asyncio.gather() for parallel execution
  • Set reasonable timeouts
  • Do not use synchronous blocking calls inside async functions

References ​

FAQ ​

Q: The plugin loading order is incorrect? ​

Adjust the priority value — lower numbers initialize first. You can also use requires to declare dependencies, and PluginManager will automatically perform topological sorting.

Q: MCP tools are not loading? ​

Ensure:

  1. The package exports register_*_tools (from register.py) and it is called from add_common_tools / McpPlugin.setup
  2. __init__.py re-exports the register function
  3. Tool names are globally unique; check logs for "registered … MCP tools"
  4. Decorator auto-discovery is gone — editing a file alone does not register tools

Q: Cannot access Python objects from QML? ​

Ensure they are properly injected in ViewManager._inject_context():

python
ctx.setContextProperty("myModel", self._my_model)

Q: Event handler is not being called? ​

  1. Check that you subscribed correctly: event_bus.on(Events.xxx, handler)
  2. Ensure the handler is an async function
  3. Check whether you unsubscribed before destruction
